Introduction

• The JS7 inventory holds scheduling objects such as JS7 - Workflows, JS7 - Calendars and Schedules etc. that are stored with the JS7 - Database.
• Users can integrate the JS7 inventory with Git repositories for JS7 - Rollout of Scheduling Objects. See the scenarios and use cases in the JS7 - Git Repository Interface article.
• The sections below explain the use of the operations for Git repositories that are available from the JOC Cockpit GUI. For automation see JS7 - How to rollout from test to prod environments in a CI CD pipeline.
• Availability of Git integration is provided with the following JS7 releases:
  • FEATURE AVAILABILITY STARTING FROM RELEASE 2.2.0
    • JOC-1216 - Getting issue details... STATUS
    • JOC-1217 - Getting issue details... STATUS
    • JOC-1144 - Getting issue details... STATUS
  • FEATURE AVAILABILITY STARTING FROM RELEASE 2.3.0
    • JOC-1218 - Getting issue details... STATUS
    • JOC-1219 - Getting issue details... STATUS
    • JOC-1213 - Getting issue details... STATUS
    • JOC-1214 - Getting issue details... STATUS
    • JOC-1215 - Getting issue details... STATUS

Settings

The following JS7 - Settings are used for Git integration:

Explanation:

• Settings are used to determine which scheduling objects are considered local to an environment and which scheduling objects should be used for rollout to subsequent environments such as in a sequence dev -> test -> prod. For details see JS7 - Git Repository Interface, chapter: Scheduling Object Mappings.
• Settings for each scheduling object type determine whether it should be considered for local use or for rollout to a remote Git repository:
  • git_hold_workflows: see JS7 - Workflows
  • git_hold_resource_locks: see JS7 - Resource Locks
  • git_hold_file_order_sources: see JS7 - Job Resources
  • git_hold_notice_boards: see JS7 - Notice Boards
  • git_hold_script_includes: see JS7 - Script Includes
  • git_hold_job_resources: see JS7 - Job Resources
  • git_hold_calendars: see JS7 - Calendars
  • git_hold_schedules: see JS7 - Schedules

Git Repositories

JS7 scheduling objects are transparently managed in a Git repository via the JOC Cockpit GUI and using the JS7 - REST Web Service API. In addition, tools such as Git Extensions and Git command line clients can be used for repository operations.

The JOC Cockpit holds a number of local repositories inside the local and rollout sub-folders of the JETTY_BASE/resources/joc/repositories folders. Each top-level folder in the JOC Cockpit inventory can be mapped to a Git repository.

• The local repository for a top-level folder is created when a user performs the checkout or clone operation for the Git repository via JOC Cockpit.
• The local repository is persistent and is updated from the JOC Cockpit database (store inventory operation) and from the remote Git repository (pull Git operation).
• The remote Git repository is updated from the local repository using the Git push operation.
• The JS7 - Cleanup Service removes any local repositories if the top-level folder no longer exists, i.e. if a top-level folder was dropped from JOC Cockpit.

The JOC Cockpit can be used to interface with remote Git repositories to store and rollout scheduling objects such as workflows and jobs.

• The JOC Cockpit supports use of Git compliant servers to manage remote repositories such as GitLab, GitHub.
• The JOC Cockpit makes use of a Git CLI Client that has to be provided by the user and has to be accessible to the run-time account of the JOC Cockpit daemon or Windows Service.

Inventory Operations

All inventory operations are based on top-level folders that are mapped to Git repositories, see JS7 - Git Repository Interface, chapter: Folder Mappings. Inventory operations do not require a Git Client but are performed directly by JOC Cockpit.

The JOC Cockpit GUI provides the Repository action menu for selecting objects for local and rollout repository use as shown in the diagram below:

The operations available in the action menu are described in the following sections.

Store Objects to local Repository

This operation stores objects managed with the JOC Cockpit database in the file system which holds the local Git repository.

When storing objects local to the environment via the Repository->Local->Store to repository action then a popup window is displayed as shown in the next screenshot:

When storing objects intended for rollout to other environments via the Repository->Rollout->Store to repository action then a popup window is displayed as shown here:

Explanation:

• Filter
  • Filters can be applied to select only draft objects or objects that have been deployed or released.
    • Valid objects that match the schema for their object type.
    • Objects deployed to a Controller and to Agents including workflows, job resources etc.
    • Objects released within JOC Cockpit include calendars and schedules.
• Handle recursively
  • The checkbox allows selection of a top-level folder to include any sub-folders and objects.
• Tree
  • The tree allows navigation of included folders and objects for selection. Selection of individual objects requires the Handle recursively checkbox to be unchecked.
  • The Object types offered, such as Workflows, Resource Locks etc., depend on the settings for the object type: see the Settings section.

Update Objects from local Repository

This operation updates scheduling objects in the JOC Cockpit inventory from objects in the file system which holds the local Git repository.

When updating objects local to the environment via the Repository->Local->Update from repository action, then a popup window is displayed as shown in the next screenshot:

When updating objects intended for rollout to other environments via the Repository->Rollout->Update from repository action then a popup window is displayed as shown here:

Explanation:

• Handle recursively
  • The checkbox allows selection of a top-level folder to include any sub-folders and objects.
• The object types offered, such as Workflows, Resource Locks etc., depend on the settings for the object type: see the Settings section.

Delete Objects from local Repository

This operation deletes objects from the file system which holds the local Git repository.

When deleting objects local to the environment via the Repository->Local->Delete from repository action then a popup window is displayed as shown in the next screenshot:

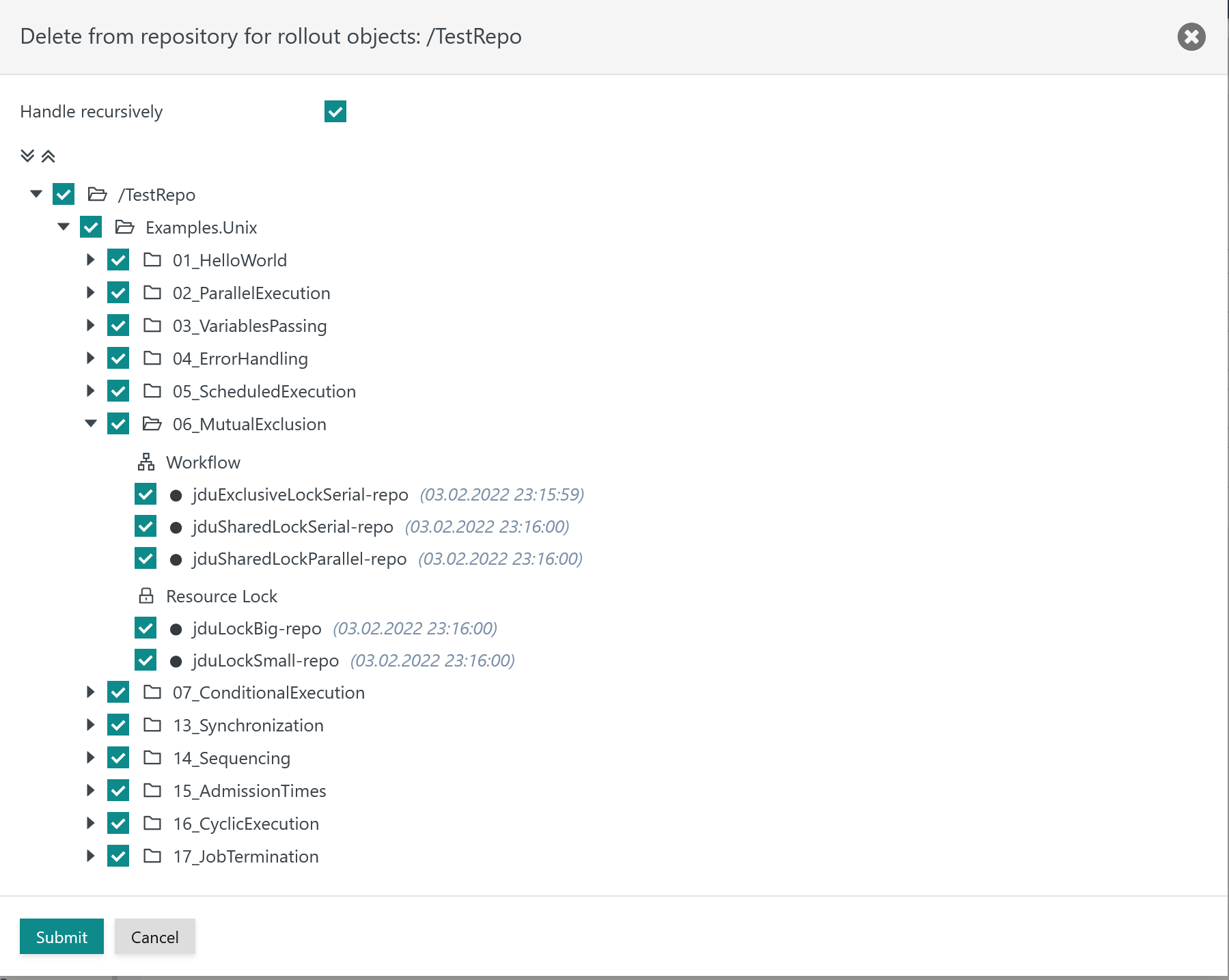

When deleting objects intended for rollout to other environments via the Repository->Rollout->Delete from repository action then a popup window is displayed as shown here:

Explanation:

• Handle recursively
  • The checkbox allows selection of a top-level folder to include any sub-folders and objects.
• The object types offered, such as Workflows, Resource Locks etc. depend on the settings for the object type: see the Settings section.

Git Server Operations

Manage Credentials for Git Access

Git credentials are managed from the user account's profile, see JS7 - Profiles - Git Management..

Clone Git Repository

A Git repository can be cloned to a new top-level folder in the JOC Cockpit inventory and it can be cloned to an existing top-level folder.

The operation for cloning to an existing top-level folder is available from the relevant top-level folder using the Repository->Local|Rollout->Git->Clone action menu item like this:

The operation for cloning to a new top-level folder, starting from the root folder, '/' is available from the Repository->Local|Rollout->Git->Clone action menu item like this:

This brings up the following popup window:

Explanation:

• Git URL: The URL git@github.com:sos-berlin/js7-demo-inventory-rollout-test.git from the example includes the following parts:
  • git@: The git@ prefix is a constant value used for ssh access to the git server.
  • github.com: The hostname and optionally port - separated by a colon - of the Git Server.
  • :sos-berlin: The owner account of the repository - starting with a colon.
  • /js7-demo-inventory-rollout-test: The path of the repository.
  • .git: The .git suffix is a constant value.
• Git URL for HTTP(S) access: The URL https://github.com/sos-berlin/js7-demo-inventory-rollout-test.git contains similar parts.
  • https://: The protocol to be used to access the git server (HTTP or HTTPS, if available).
  • github.com: The hostname and optionally port - separated by a colon - of the Git Server.
  • /sos-berlin: The owner account of the repository - starting with a slash.
  • /js7-demo-inventory-rollout-test: The path of the repository.
  • .git: The .git suffix is a constant value.
• Folder Name: The input field is available if the clone operation is invoked from the root folder '/' to clone to a new top-level folder. The name of the new top-level folder has to be specified.

After cloning, a popup window will present a feedback message like this:

After cloning, the tree in the left panel will include the top-level folder to which the repository has been cloned.

In order to populate the JOC Cockpit inventory top-level folder, the Repository->Local|Rollout→Update from repository action menu has to be invoked like this:

Push to remote Git Repository

Before pushing changes to a Git repository, such changes have to be stored to the local repository using the Repository->Local|Rollout->Store to repository action menu item.

To push changes to scheduling objects from a local repository to the remote Git repository the Repository->Local|Rollout->Git->Push action menu item has to be invoked like this:

The push operation reflects scheduling objects that have been added, updated or removed. In addition, the changes are committed to the local repository staging area and require a message to be added by the user like this:

In response to the push operation a popup window will appear with a feedback message like this:

Pull from remote Git Repository

The Repository->Local|Rollout->Git->Pull action menu item is used to pull changes from a remote Git repository to the local repository as shown below:

In response to the pull operation, a popup window will appear with a feedback message like this:

The above message indicates that the local repository is up-to-date.
